I2M TPMS / CAN Receiver Kit 8.5mm

In stock
SKU
TPCK8
£440.00

I2M TPMS / CAN Receiver Kit 8.5mm - TYRE PRESSURE AND TEMPERATURE MONITORING SYSTEM - MotorcycleRaceParts - Official I2M UK Distributor - FREE NEXT DAY UK DELIVERY

Our customers say Excellent 5 out of 5 on Google reviews

FREE DELIVERY

On orders over £50

PRICE MATCH GUARANTEE

Found this product cheaper elsewhere in the UK? We'll match the price!


I2M TPMS / CAN Receiver kit 8.5mm - TYRE PRESSURE AND TEMPERATURE MONITORING SYSTEM

Always keep track of the pressure and tyre temperature of your tyres!

In the warmers, on the rack, on the grid and on the track in real time using a data logger!

--

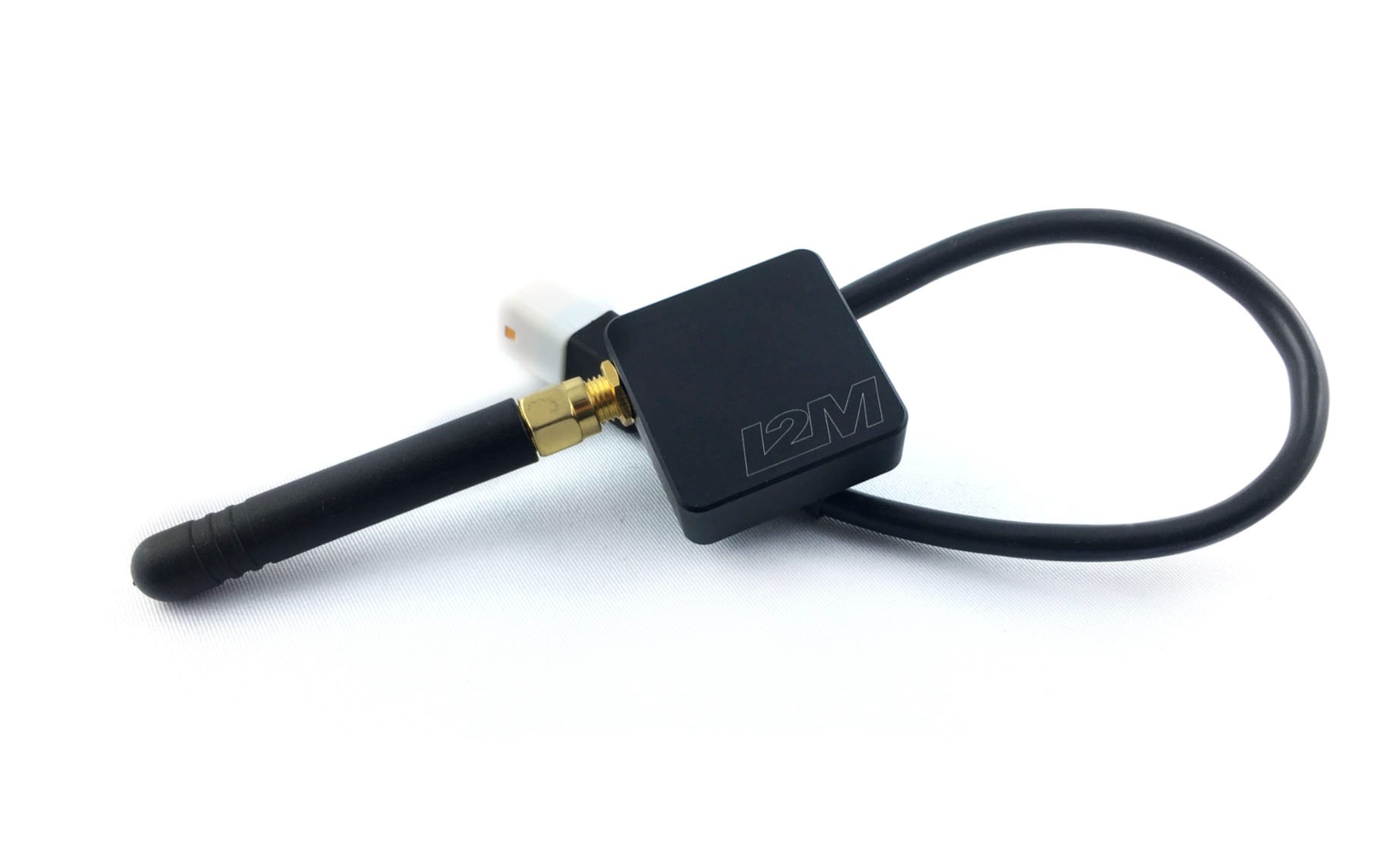

The I2M TPMS / Can receiver allows reception of the RF signal sent by the I2M pressure sensors inserted inside each tyre/wheel.

The received signals are transmitted on Can Bus and can be received on the I2M Chrome Lite / Plus dashboards or from any other data acquisition system including Motec/Solo Engineering.

Very easy to configure to run with BSB Solo engineering and Motec Electronics - using I2M TPMS/Can USB cable

--

Tried and tested kit used extensively in MotoGP WSBK BSB

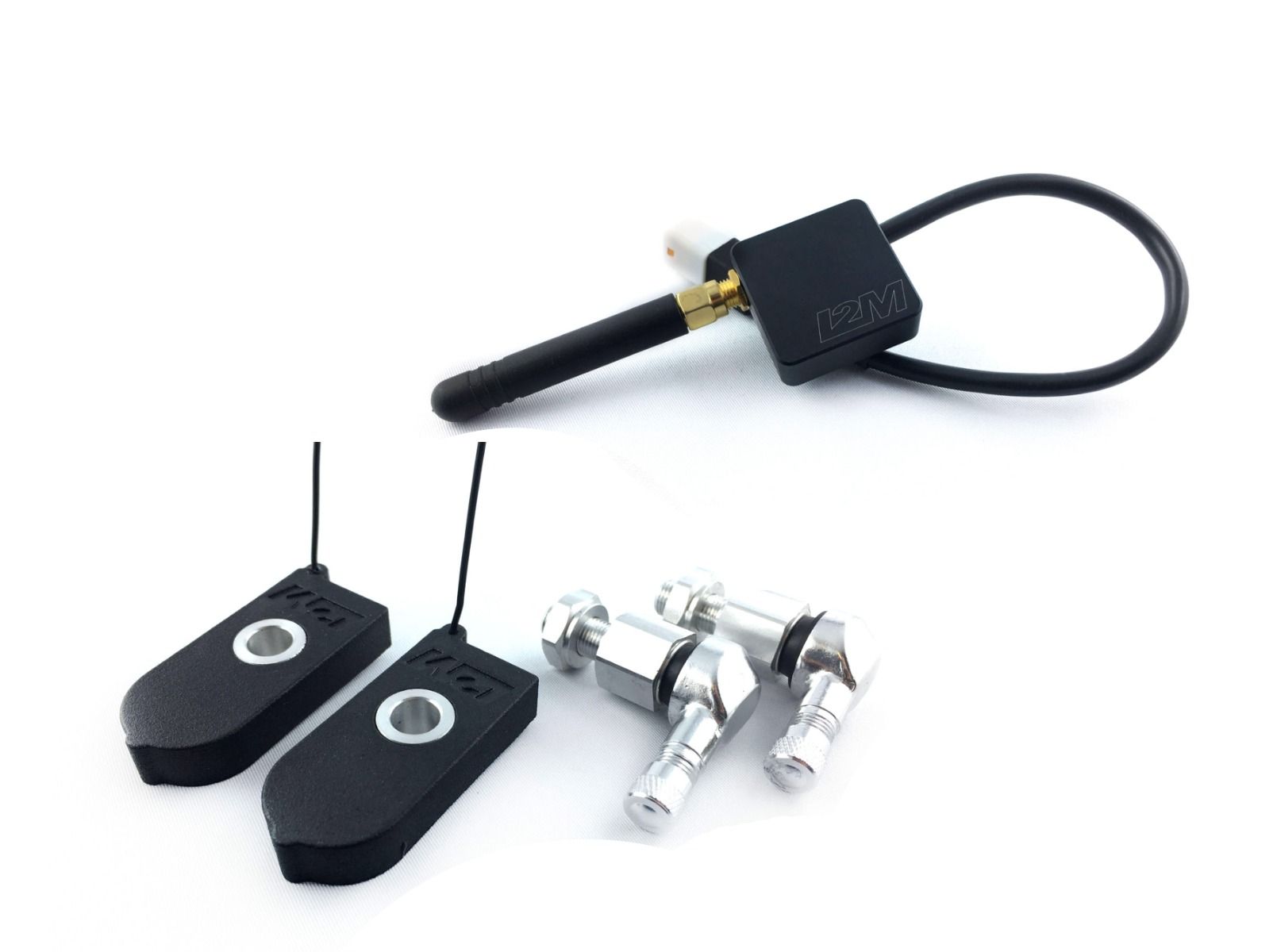

The I2M TPMS / CAN Receiver Kit is supplied complete with:

  • x1 I2M CAN Receiver [usb receiver / display screen options also available]
  • x2 I2M TPMS Sensors
  • x2 8.5mm Valve adaptors for sensor support (valves not included).
  • Free software available [downloadable] to monitor upto 24 different tyres at once.



Kits available to suit both 8.5mm and 11.5mm wheel/tyre valves.

It is then possible to purchase additional sensors to increase the number of tyres to be monitored.

The sensors have one degree resolution for the internal rim temperature and 0.01 bar for the internal pressure.

--

I2M TPMS Kit Features:

  • Connect directly via CAN to I2M Chrome Lite / Plus dashboards or any other data acquisition system including Motec/Solo Engineering.
  • Very easy to configure to run with BSB Solo engineering and Motec Electronics
  • Simultaneous reading of 24 sensors (100 for the TPMS/Can)
  • Minimum/maximum pressure/temperature alarms
  • Range 8-10m
  • Attention: sensor support not compatible with original Ducati V2 wheels - adaptor fitting required please contact for more info
  • 2 Sensors with valves adaptors included in the kit
  • Available 8.5mm and 11.5 mm size
  • Internal battery - auto power on/off
  • Weight: 17g
  • Resolution: 1 degree, 0.01 bar

--

The FREE Danas software download allows you to configure the minimum and maximum pressure and temperature alarms for both the front and rear tyres. The data is colored blue or red to indicate the exceeding of the thresholds, in one verse or another. The status of the battery is also indicated for each sensor. Plus you can set specific bike/wheel sensor CAN ID's

--

Kits also available with CAN Receiver to connect directly to compatible bike electronics/data logging - see related items

Very easy to configure to run with BSB Solo engineering and Motec Electronics - using I2M TPMS/Can USB cable - SOLD separateley

BSB / FIM WSBK approved parts/system



More Information
Brand I2M
